Horizontal Toggle Clamps for Jig and Fixture Sourcing details

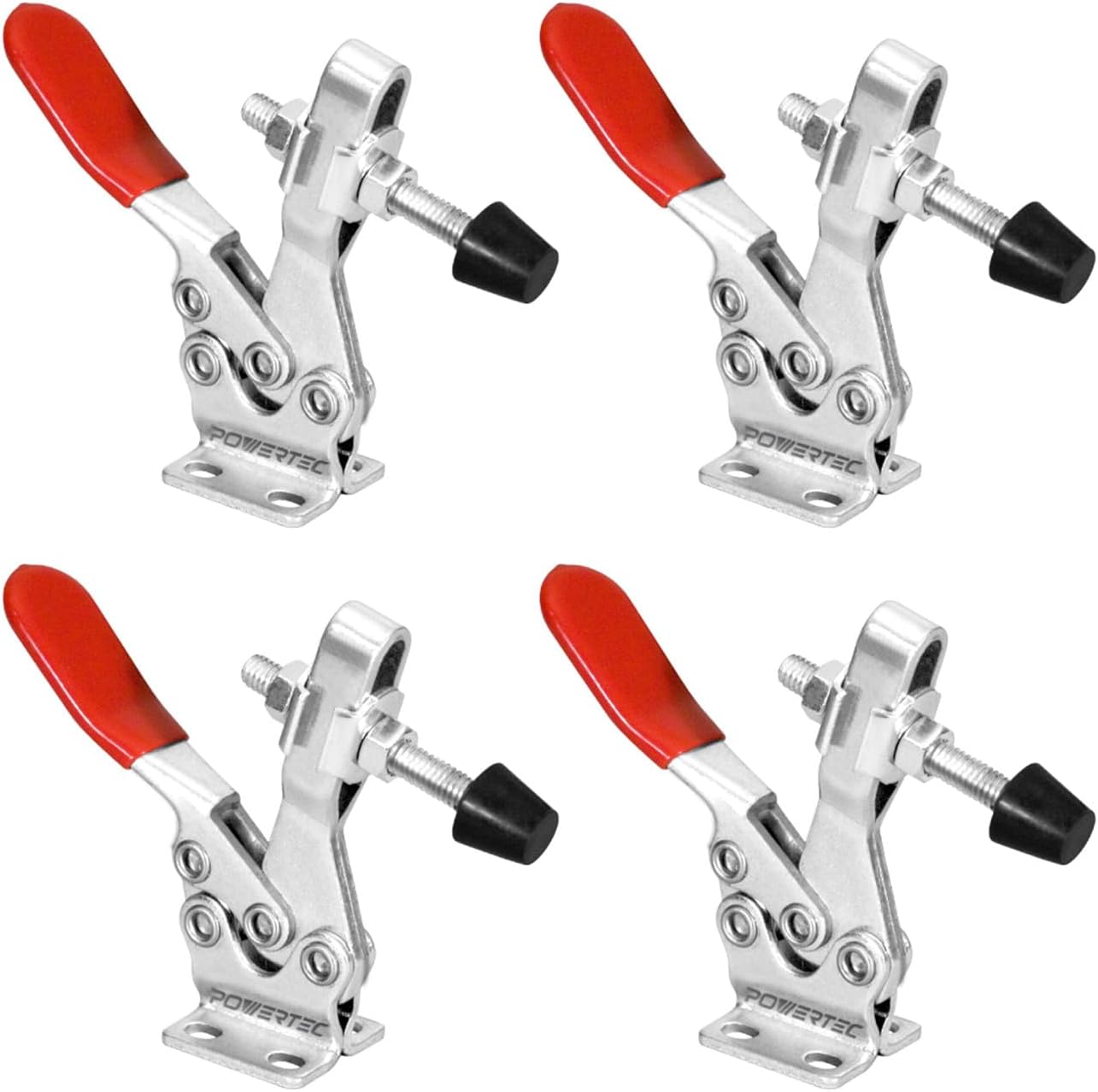

Quick Release Toggle Clamps

Workshop suppliers can compare horizontal toggle clamps for repeatable workholding in a defined jig. Mounting geometry and the contact point need to match the fixture. A capacity stated for a reference product should not be carried over to an untested sourcing alternative.

Product Options to Discuss

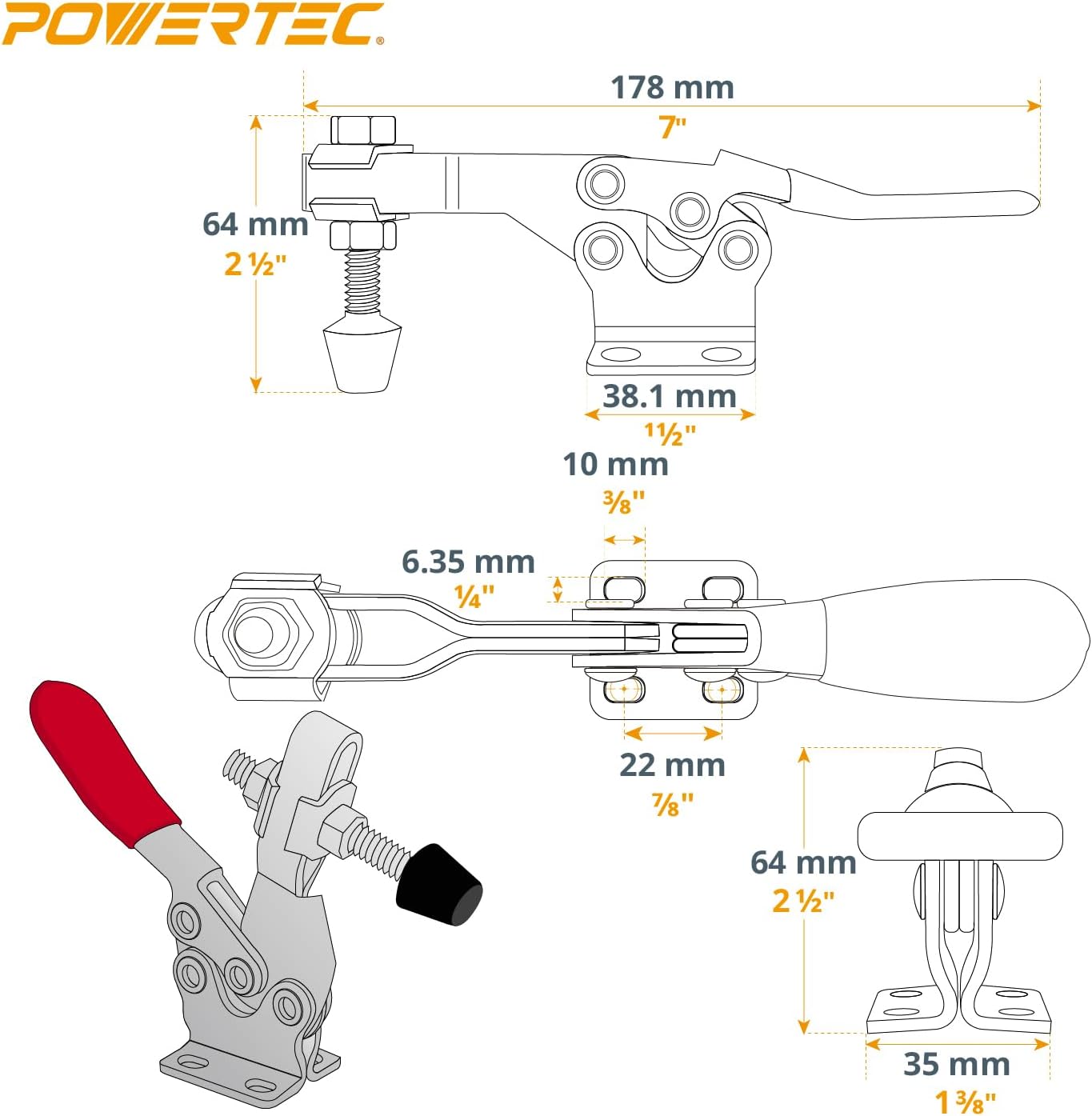

• Provide a drawing showing mounting holes, workpiece height, reach and required handle clearance.
• Compare the spindle adjustment, pressure pad, handle travel and finish.
• State the fixture use, expected operating cycles and any load documentation needed for evaluation.

Sample Review

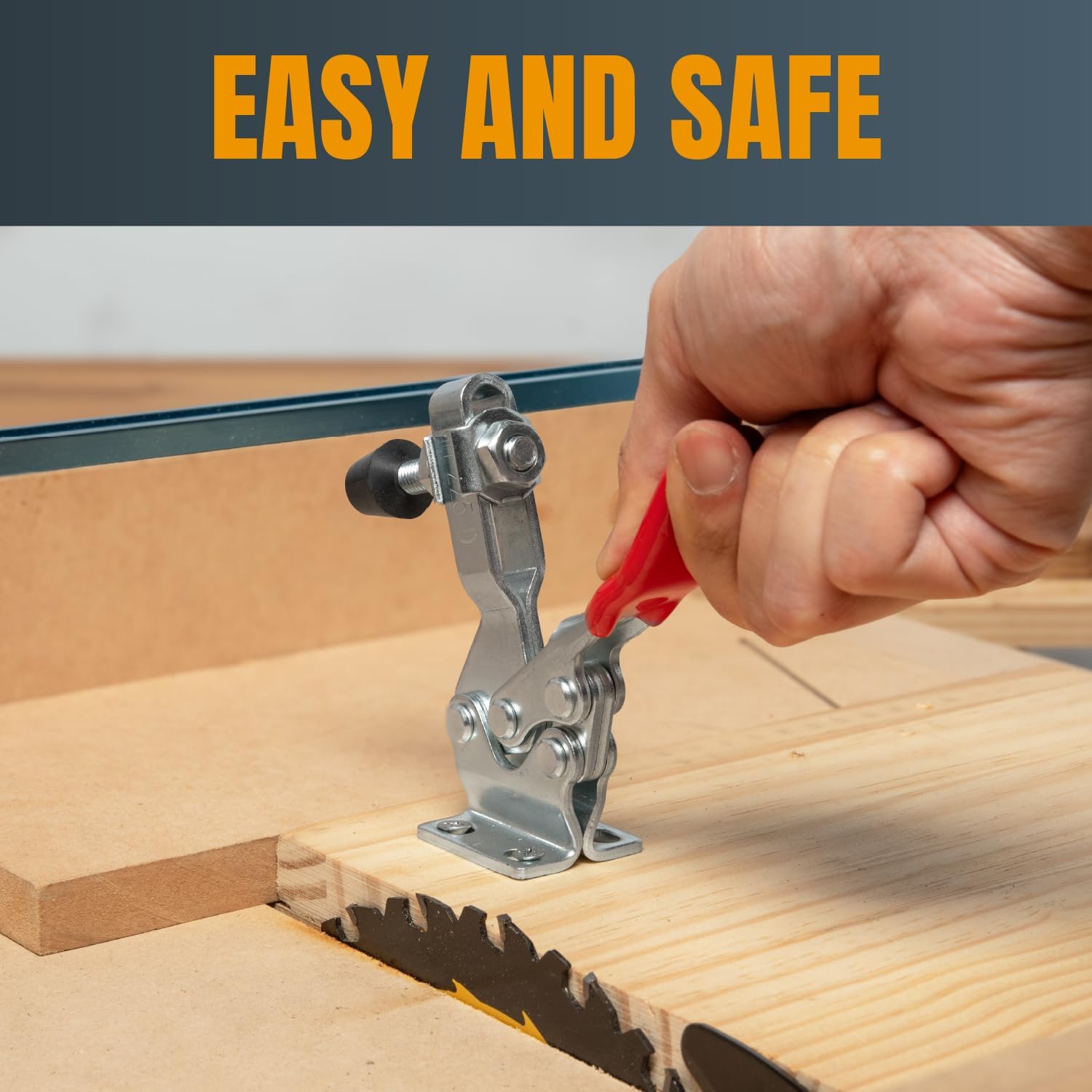

Fit a sample to the intended fixture and assess locking action, interference, adjustment and loosening over repeated cycles. Verify the selected model's ratings and limitations before use; this inquiry does not specify lifting equipment.

Request Sourcing Details

Tell us your required quantity, destination market, preferred specifications and packaging needs. Logo placement and other customization options can be discussed during supplier selection. Materials, samples, minimum order quantity, pricing and lead time are subject to supplier confirmation.
