Contour Profile Gauge — Sourcing Reference

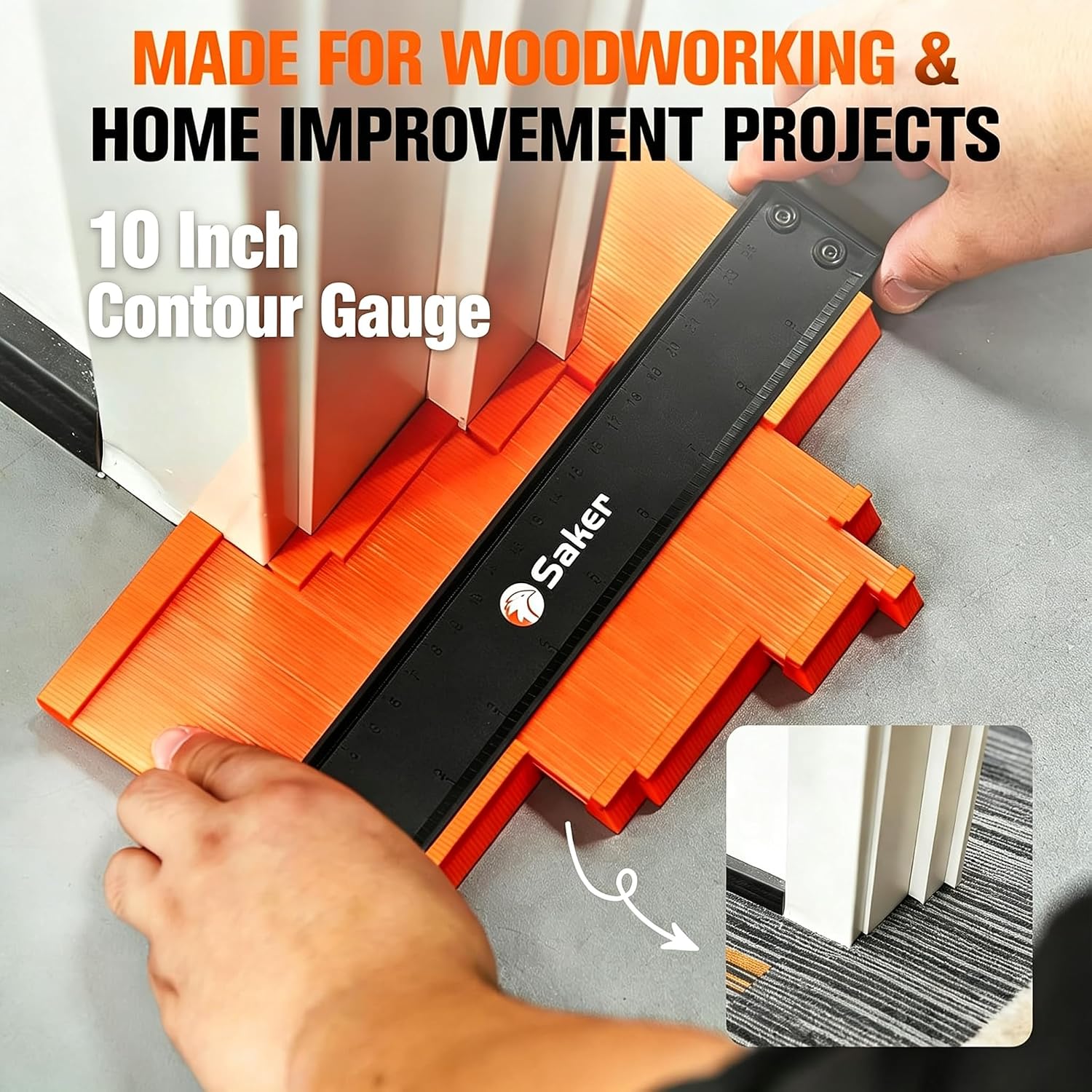

A contour gauge records a profile to help transfer a shape to another surface. A useful purchasing brief identifies the shapes and working space involved, then compares the gauge's travel and locking arrangement.

This page supports B2B sourcing and design discussions. It is not an offer to sell the source brand's product.

Build Your Product Brief

• Usable width, pin depth and body dimensions

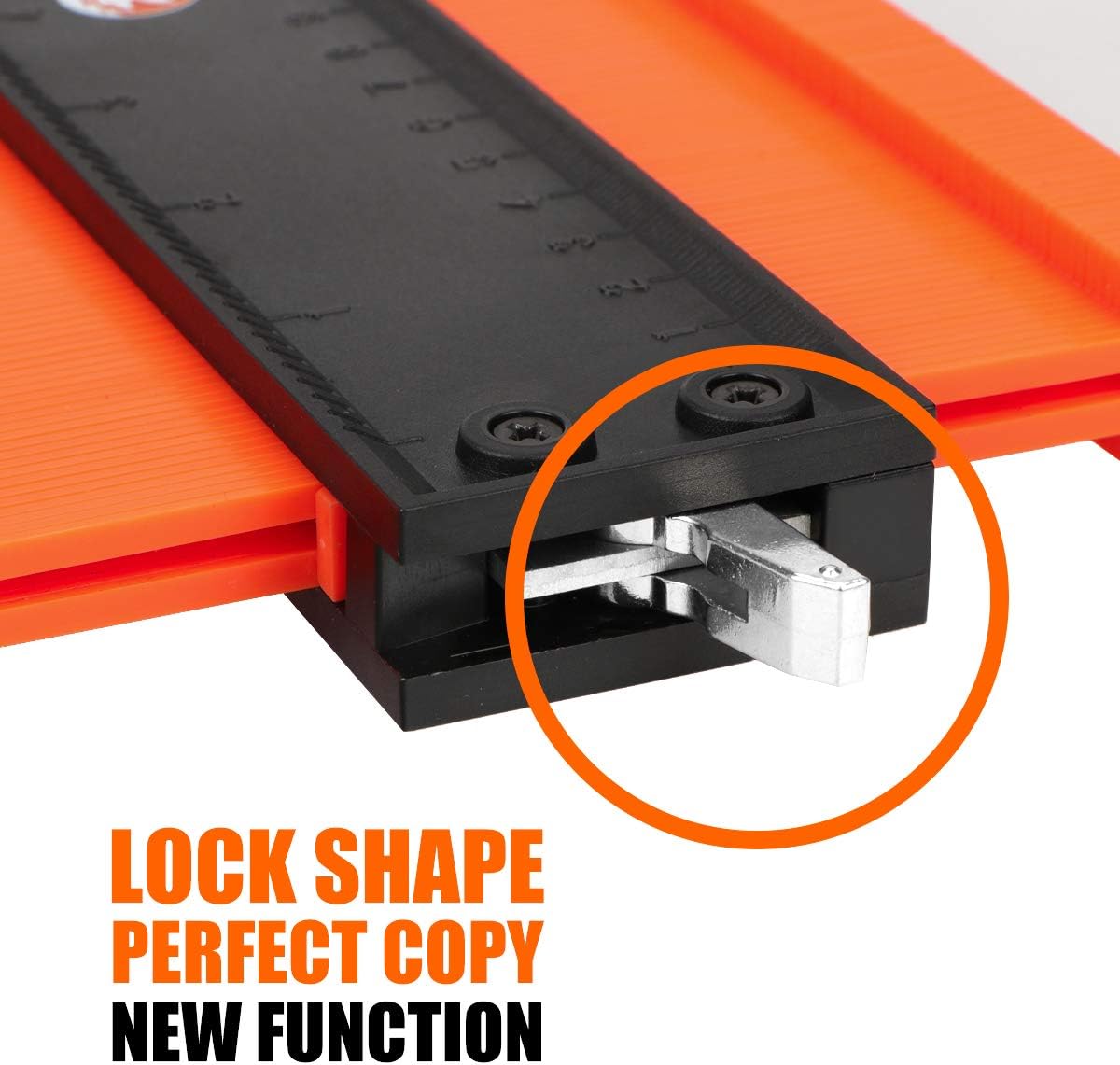

• Locking preference, scale markings and pin construction
• Color, storage protection and set composition

Sample Review Points

Check smooth movement, profile retention and marking readability. Dimensional accuracy should be assessed against your application rather than assumed from the image.

Start an Inquiry

Send your required quantity, destination market, target price and the specifications above. Use your own drawings or authorized artwork for a new design. Feasibility, samples, minimum order quantity, quotation and lead time require supplier confirmation; stock and production capability are not established by these reference images.
